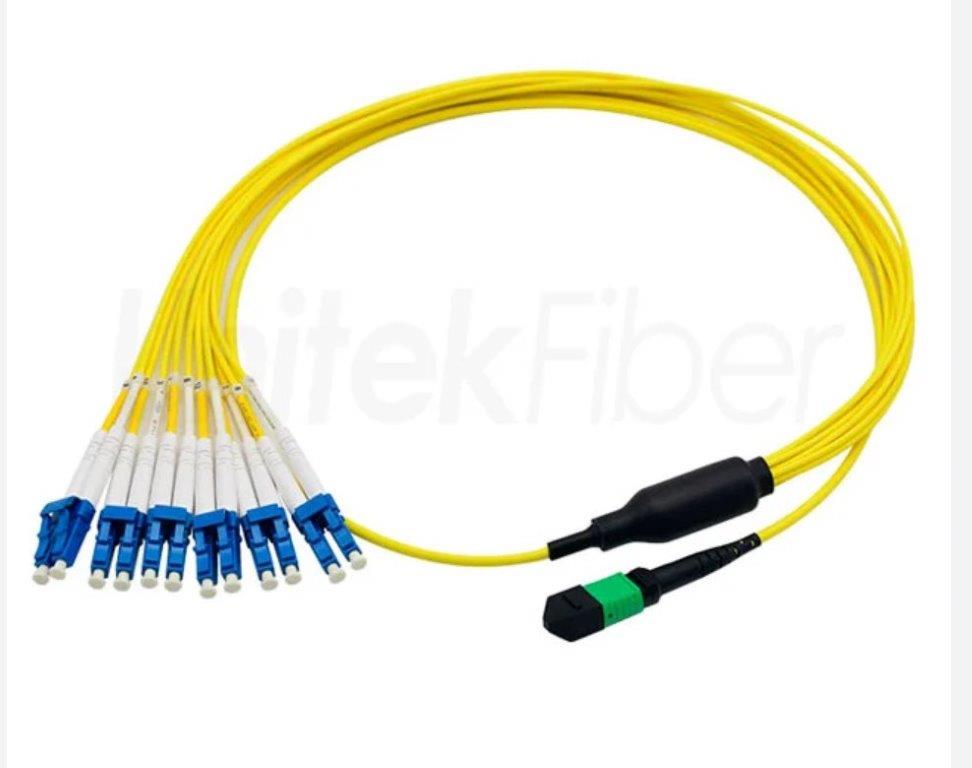

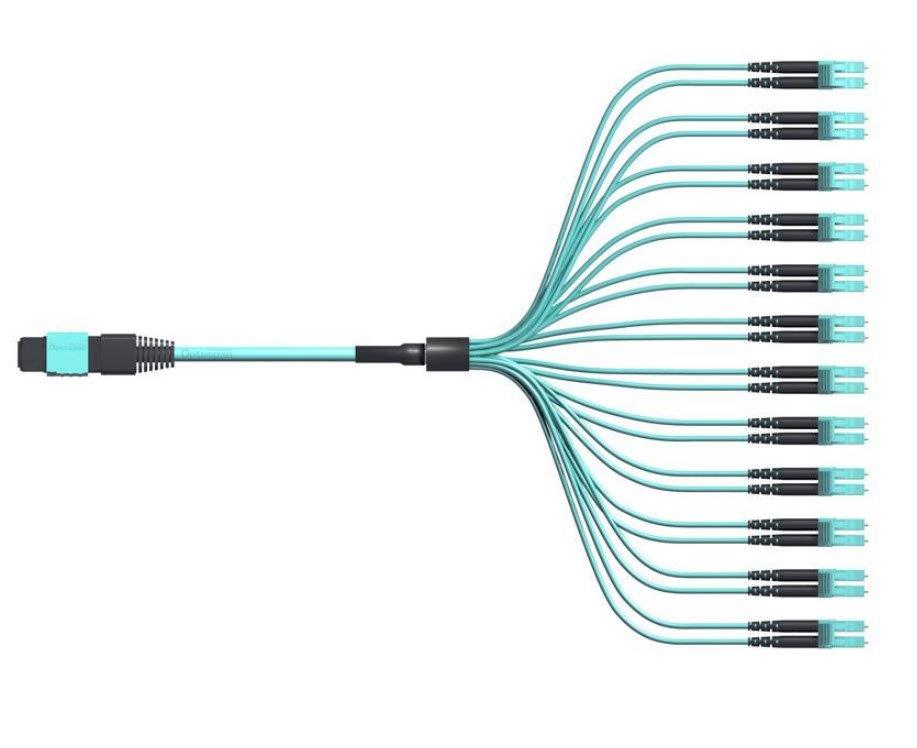

MTP/MPO Cables
The quantity of data transmitted worldwide and the need for ever-greater bandwidth is growing exponentially. The number of network connections in data centers is rising rapidly, and traditional fiber cables can make your data center crammed and difficult to manage.
To meet this demand, Major Custom Cable offers MTP/MPO fiber connectors which increases bandwidth while reducing the footprint. MTPs (Multi-fiber Termination Push-on) and MPOs (Multi-fiber Push-on) are often used interchangeably. Major Custom Cable only uses the best quality MTP Elite connectors which are interchangeable with MPOs.
MTP/MPO cables play an important role in ultra-high-density cabling. They deliver the extra bandwidth needed for high data transmission applications, and also have the advantages of shorter installation times, tested and guaranteed quality, and greater reliability. Combining to meet the 40GBASE-SR4 and 100GBASE-SR10 standard, the MTP/MPO multi-fiber connector of MTP/MPO cables is about the same size as a SC connector but can accommodate 8, 12, or 24 fibers, thus offering savings in circuit card and rack space.
Major Custom Cable has combined the very best in both standard and lockable MTP based connectors in conjunction with defense grade tactical cable. These cords are designed for rapid deployment in optical networks requiring high mechanical performance specifications, extreme environmental exposure, and highly dynamic operating conditions. These cables are able to withstand high tensile loads, severe crushing forces, repeated impacts, and extreme temperatures.
Features:
Composed of MTP/MPO connectors and fiber optic cables
Available with singlemode or multimode fiber
Ruggedized MTP solutions available for harsh environmental applications
If you do not see a product suitable for your application, please contact us. Our extensive experience with MTP/MPO cables enables us to offer custom solutions to meet any unique need.
Checklist:
- Type: Round, Jacketed Ribbon, or Bare Ribbon
- Jacket: Riser, Plenum, or LSZH
- Length: Feet, meters, inches, millimeters, etc.
- Armored: Indoor or Outdoor use? If indoor use, interlocking armor or Nanotek armor? If outdoor use, interlocking armor or corrugated steel tape for direct burial use?
- Glass: Singlemode, 62.5 OM1, 50 OM2, 50 OM3, 50 OM4, or 50 OM5
- Connectors: Male MTP with Pins, Female MTP without Pins, UniBoot LC, LC, LC/APC, SC, SC/APC, ST, D4, MU, FC, FC/APC, or MTRJ
- Custom Labels: How many, position on the cable, and text or graphics required?
- Custom Packaging: Yes or No
- Custom Kitting: Yes or No
Product FAQs.
Can you blind ship?
Yes, we can ship any order with no reference to Major Custom Cable on the box or packing slip at no extra cost.
Can you build Neutrik certified assemblies?
Yes, Major Custom Cable is an approved Neutrik Certified OpticalCON Assembler (COCA).
Do you have a dropship penalty?
No, we will ship your order to the address of your choosing, including third-party locations, with no penalty.
Do you require a minimum order?
Major Custom Cable has no MOQ on standard products. However, some custom items may require material MOQs. Contact us for more information.
Do you test the cables before they are shipped?
Yes, Major Custom Cable tests 100% of the cables we manufacture and ship.
From where does your product ship?
Most Major Custom Cable products ship from our headquarters in Missouri. We also have various stocking locations throughout the U.S. that we utilize to better service our customers.
Is Major Custom Cable ISO Certified?
Yes, we have been ISO Certified since 2004.
What is your freight allowed policy?
We handle freight terms on a case-by-case basis. Contact us for more information.
What is your warranty?
A limited lifetime workmanship warranty is provided on all products manufactured by MCC, Inc. The warranty is limited to repairing or replacing, at MCC’s discretion, any product proven to be defective upon inspection. MCC is not responsible for components or workmanship provided by outside suppliers. Abuse, alteration, or misuse invalidates all warranties.
